Buy: London Bar

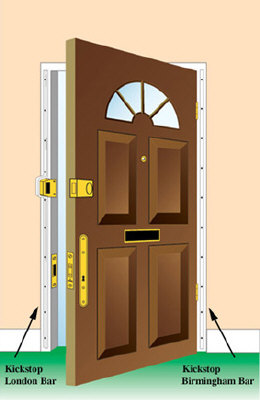

The Kickstop London Bar is a door frame reinforcing bar with a 'D' shaped staple to fit over and secure the staple (keep) of a surface fitted rim lock or cylinder nightlatch.  This very effective steel anti-burglary device is screwed on to the internal face of the lock side of the frame and will resist the kicking, splitting and forcing open of the door



At 5mm thick with a rounded edge and countersunk holes, it could blend in with the colour of the frame and is available in a choice of length, width and staple size



 When fitting the Longer London Bars, a little of the top or the bottom of the bar will probably need to be removed when fitting - by cutting with a hacksaw







Before ordering

Very carefully check that the London Bar has the appropriate staple size that you need to fit over the staple/keep of the nightlatch or rim lock

The lock staple (also known as the keep) is the part that is fitted to the door frame.  The surface mounted lock latches into this - when the door is closed



Most of the bars are available in three lengths and two widths of steel

  • Check the available width of flat door frame - before ordering
  • Decide on the width of bar required - 16mm or 20mm
  • Decide on the staple size required
  • Decide on the length of bar required
  • Decide on the colour/finish required



Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.



Universal Staple - up to 30 x 97mm. This is a large size staple that can be slightly reduced from 97mm - to fit over a smaller rim lock staple of 70mm or less

Standard Staple - 30 x 70mm. To fit over a Yale 77 and other similar sized nightlatch staples

Large Staple - 30 x 97mm. To fit over the Yale No. 1 and other similar sized rim locks staples

Extra Large Staple - 40 x 105mm. To fit over the ERA 1930, Yale PBS1, Banham L2000, Ingersoll SC100 and other similar sized rim lock staples

Ingersoll Staple - a 'handed' 30 x 70 modified standard staple London Bar. The modification allows its use with a left or right handed Ingersoll SC71 lock.

Ask us - if you are not sure.

!
Kickstop
Product Code: 2011 WH

Kickstop London Bar Universal Staple (Short/ Narrow)

Discount Applied Automatically
  • Code: 2011 WH

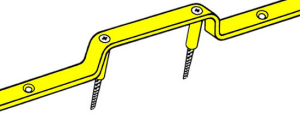

  • Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less **
  • White Colour
  • 24" (610mm) x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

** The 2 extra fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a Standard or Large Staple

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw

2011 dimensions - 610mm long x 16mm wide x 5mm thick - White

(a wider version is available - 20mm - product code 2017)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 2009 WH

Kickstop London Bar Universal Staple (Medium/ Narrow)

Discount Applied Automatically
  • Code: 2009 WH
  • Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less **
  • White Colour
  • 72" (1830mm) x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

** The 2 extra fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a London Bar with a Standard or Large size staple

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw

2009 dimensions - 1830mm long x 16mm wide x 5mm thick - white

(a wider version is available - 20mm - product code 2010)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 2017 WH

Kickstop WIDE London Bar Universal Staple (Short/ Wide)

Discount Applied Automatically
  • Code: 2017 WH
  • Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less **
  • White Colour
  • 24" (610mm) x 3/4" (20mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

** The 2 extra fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a Standard or Large Staple

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw

2017 dimensions - 610mm long x 20mm wide x 5mm thick - White

(a narrower version is available - 16mm - product code 2011)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 2010

Kickstop WIDE London Bar Universal Staple (Medium/ Wide)

Discount Applied Automatically
  • Code: 2010 WH
  • Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less **
  • 72" (1830mm) x 3/4" (20mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

** The 2 extra fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a Standard or Large Staple

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw

2010 dimensions - 1830mm long x 20mm wide x 5mm thick

Wide Bar (a narrower version is available - 16mm - product code 2009)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 9608

Kickstop London Bar Standard Staple (Short/ Narrow)

Discount Applied Automatically
  • Code: 9608
  • Standard size 'D' shape staple to fit over a lock staple/keep which is 30mm x 70mm - or less
  • 24" (610mm) x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9608 dimensions - 610mm long x 16mm wide x 5mm thickode:

Narrow Bar (a wider version is available - 20mm - product code 9616)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 2606 WH

Kickstop London Bar Standard Staple (Medium/ Narrow)

Discount Applied Automatically
  • Code: 2606 WH
  • Standard size 'D' shape staple to fit over a lock staple/keep which is 30mm x 70mm - or less
  • White Colour
  • 72" (1830mm) x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



2606 dimensions - 1830mm long x 16mm wide x 5mm thick - White

There is no Wide version

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 9606

Kickstop London Bar Standard Staple (Long/ Narrow)

Discount Applied Automatically
  • Code: 9606
  • Standard size 'D' shape staple to fit over a lock staple/keep which is 30mm x 70mm - or less
  • 78" (1980mm) x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9606 dimensions - 1980mm long x 16mm wide x 5mm thick

Narrow Bar (a wider version is available - 20mm - product code 9607)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 9607

Kickstop WIDE London Bar Standard Staple (Long/ Wide)

Discount Applied Automatically
  • Code: 9607
  • Standard size 'D' shape staple to fit over a lock staple/keep which is 30mm x 70mm - or less
  • 78" (1980mm) x 3/4" (20mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9607 dimensions - 1980mm long x 20mm wide x 5mm thick

Wide Bar (a narrower version is available - 16mm - product code 9606)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 2609 WH

Kickstop London Bar Large Staple (Medium/ Narrow)

Trade Discount Applied at Checkout
  • Code: 2609 WH
  • Large size 'D' shape staple to fit over a lock staple/keep which is 30mm x 97mm - or less
  • White Colour
  • 72" (1830mm) x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



2609 dimensions - 1830mm long x 16mm wide x 5mm thick - White

A Wide version is not available

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 9609

Kickstop London Bar Large Staple (Long/ Narrow)

Discount Applied Automatically
  • Code: 9609
  • Large size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less
  • 78" (1980mm)  x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9609 dimensions - 1980mm long x 16mm wide x 5mm thick

Narrow Bar (a wider version is available - 20mm - product code 9610)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 9610

Kickstop WIDE London Bar Large Staple (Long/ Wide)

Discount Applied Automatically
  • Code: 9610
  • Large size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less
  • 78" (1980mm) x 3/4" (20mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9610 dimensions - 1980mm long x 20mm wide x 5mm thick

Wide Bar (a narrower version is available - 16mm - product code 9609)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 9630

Kickstop London Bar Extra Large Staple (Long/ Narrow)

Discount Applied Automatically
  • Code: 9630
  • Extra Large size 'D' shape staple to fit over lock staple/keep which is 40mm x 105mm - or less
  • 78"(1980mm) x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9630 dimensions - 1980mm long x 16mm wide x 5mm thick

Narrow Bar (a wider version is available - 20mm - product code 9631)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 9631

Kickstop WIDE London Bar Extra Large Staple (Long/ Wide)

Discount Applied Automatically
  • Code: 9631
  • Extra Large size 'D' shape staple to fit over lock staple/keep which is 40mm x 105mm - or less
  • 78" (1980mm) x 3/4" (20mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9631 dimensions - 1980mm long x 20mm wide x 5mm thick

Wide Bar (a narrower version is available - 16mm - product code 9630)

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 9612

Kickstop London Bar Left Hand (Long/ Narrow)

Discount Applied Automatically
  • Code: 9612
  • Ingersoll SC71 size 'D' shape staple to fit over lock staple/keep which is 30mm x 70mm - or less **
  • This is a Standard Size staple with a cut out to allow the Springbolt of the lock to pass through
  • 78" (1980mm) x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

The staple is a modified Standard Staple size with a small cut out section that allows it to be used with the INGERSOLL SC71 Size - *LEFT HANDED

NB: *The lock would be fitted to *right hand side of door when viewed from inside - If in doubt - check before ordering

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9612 dimensions - 1980mm long x 16mm wide x 5mm thick

A Wide version is not available

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop
Product Code: 9613

Kickstop London Bar Right Hand (Long/ Narrow)

Discount Applied Automatically
  • Code: 9613
  • Ingersoll SC71 size 'D' shape staple to fit over lock staple/keep which is 30mm x 70mm - or less **
  • This is a Standard Size staple with a cut out to allow the Springbolt of the lock to pass through
  • 78" (1980mm) x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

The staple is a modified Standard Staple size with a small cut out section that allows it to be used with the INGERSOLL SC71 Size - *RIGHT HANDED

NB: *The lock would be fitted to *left hand side of door when viewed from inside - If in doubt - check before ordering

Depending on the vertical position (height) of the rim lock staple/keep on the door frame, it may be necessary for the purchaser to cut the top or bottom off the longer versions of the London Bars - with a hacksaw



9613 dimensions - 1980mm long x 16mm wide x 5mm thick

A Wide version is not available

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Product Code: 9632

Kickstop London Bar Extra Large Staple (Short/ Narrow)

Discount Applied Automatically
  • Code: 9632
  • Extra Large size 'D' shape staple to fit over lock staple/keep which is 40mm x 105mm - or less
  • 24"(610mm) x 5/8" (16mm) solid steel bar - with rounded sides and countersunk screw holes
  • To Reinforce and Strengthen Wooden Door Frame

9632 dimensions - 610mm long x 16mm wide x 5mm thick

Narrow Bar

Kickstop Bars are manufactured from specially rolled superior grade, 5mm thick solid steel bar with rounded sides. Each fixing hole is a countersunk hole to ensure that the countersunk screw heads can be fitted flush with the surface of the flat bar.

Kickstop London Bars are manufactured from one continual length of high grade steel - and have no unsightly welding.

A packet of 2 1/2" long, No. 10 countersunk hardened steel woodscrews is supplied.

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information
